All plots are 1.0 V/div vertical scale with 0.60 VDC trigger.

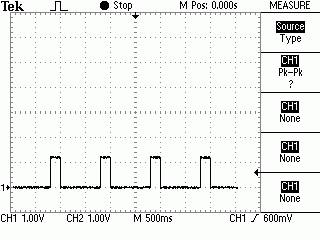

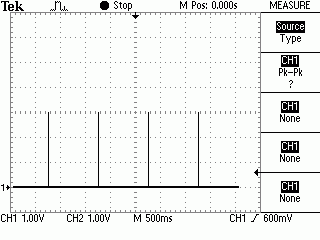

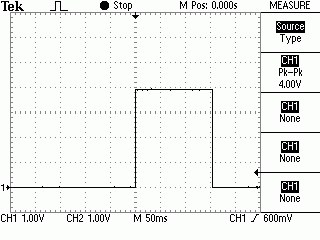

Receiver | 1 pps (no trigger, 500 ms/div) | Pulse width (see scale) |
---|---|---|

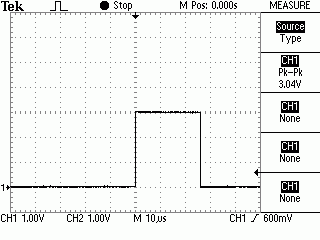

58503B | ||

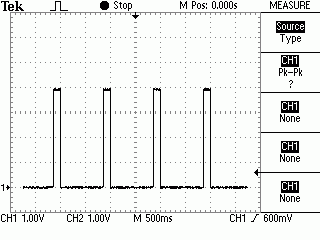

CNS II | ||

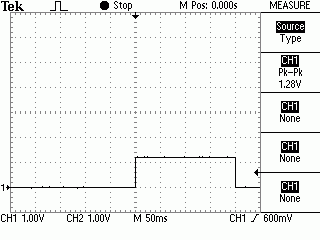

FireFly |

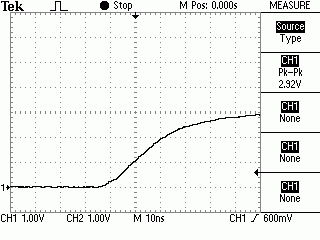

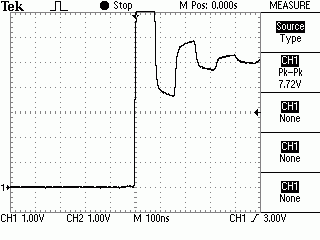

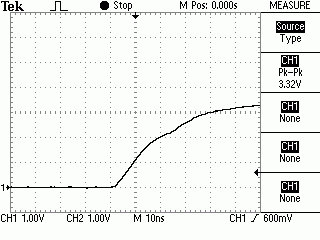

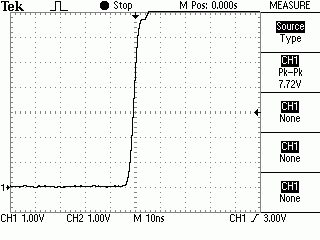

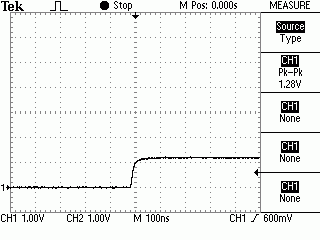

Receiver | Edge (100 ns/div) | Edge (10 ns/div) |
---|---|---|

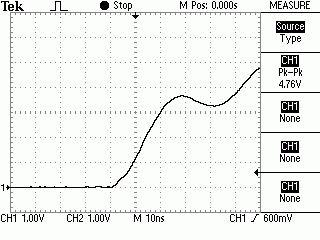

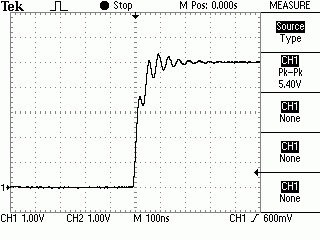

58503B | ||
CNS II | ||

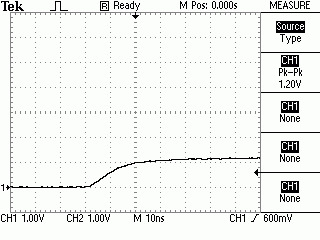

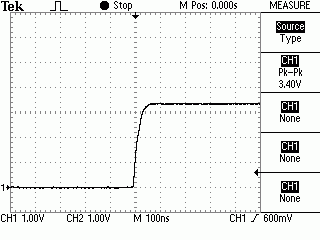

FireFly |

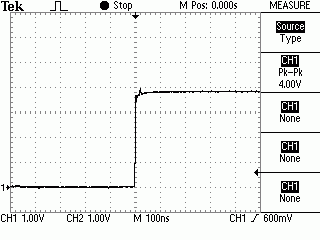

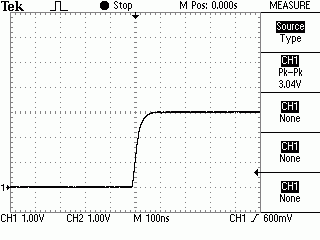

Receiver | Edge 1M (100 ns/div) | Edge 1M (10 ns/div) |
---|---|---|
58503B | ||
CNS II | ||
FireFly |
