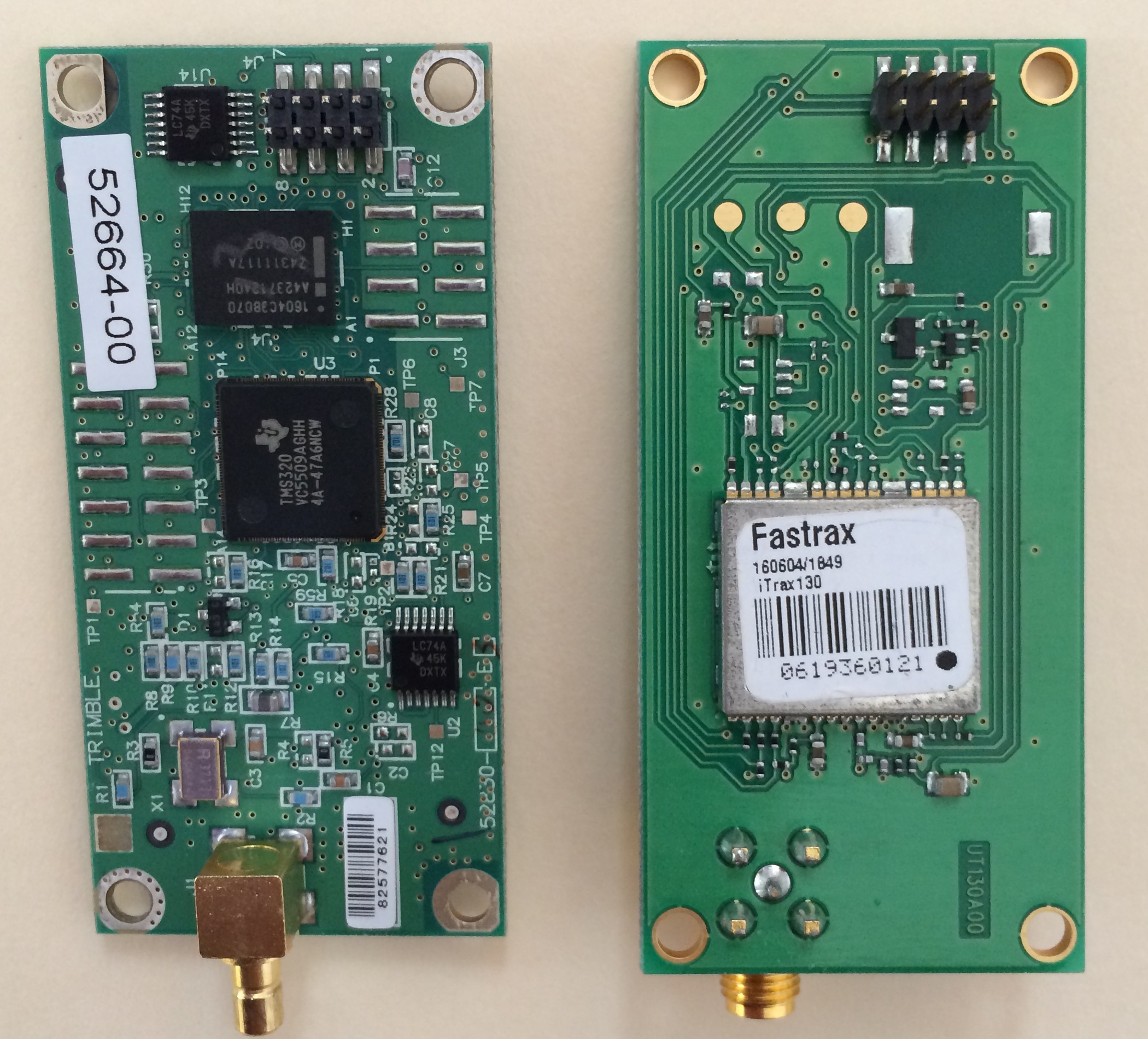

Trimble Resolution-T and Fastrax/iTrax130

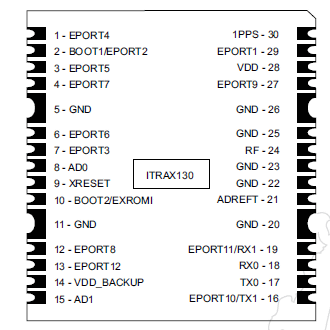

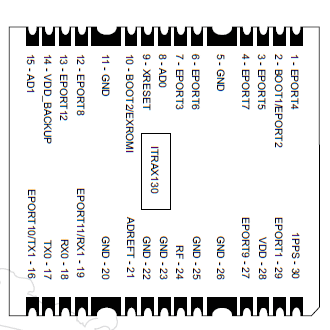

iTrax130 pin-outs

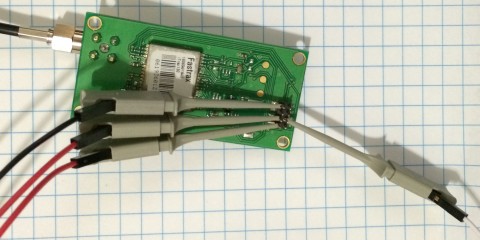

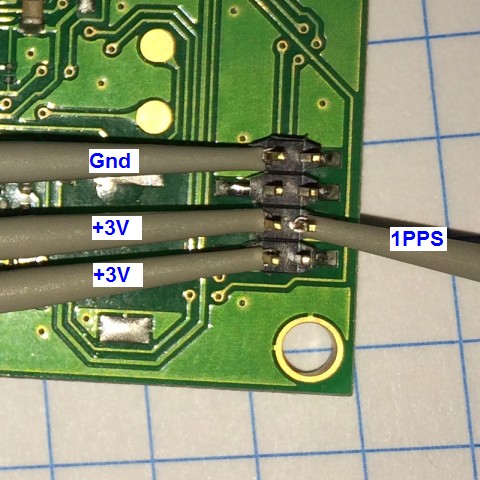

iTrax130 PCB, showing serial (on left), power and 1PPS (on right)

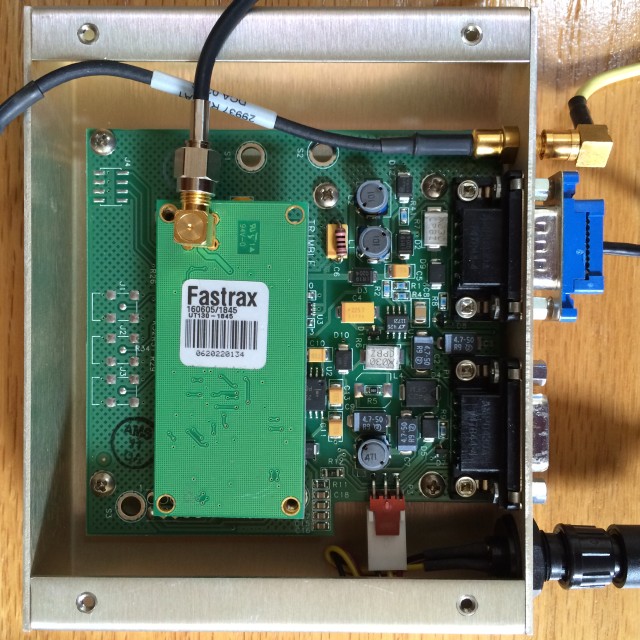

Fastrax/iTrax130 inside Trimble Resolution-T dev kit

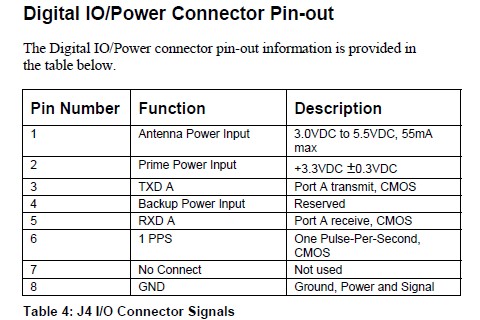

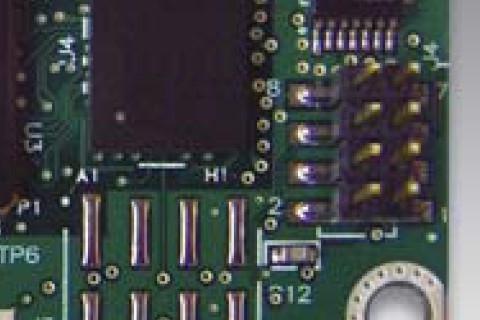

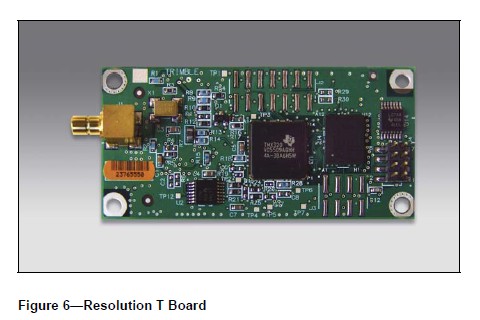

Resolution-T photo and pins-outs (from Trimble manual)
Trimble Resolution-T and Fastrax/iTrax130 (Hi-Res)

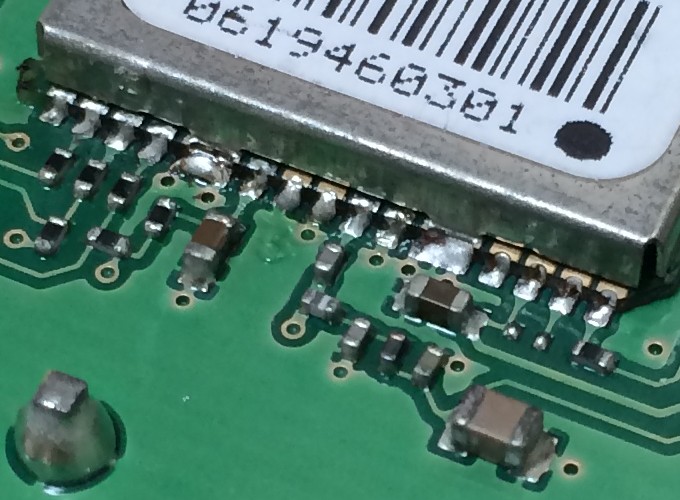

iTrax130 pins
June 2014 testing notes:
Pin 8 is ground.
Apply +3VDC to both pin 2 and pin 4.
1PPS output is pin 6.
9600 baud NMEA serial output is pin 3.
