A Day in the Life of an Oscilloquartz 8607

04-Aug-2007

Some plots and raw data by request.

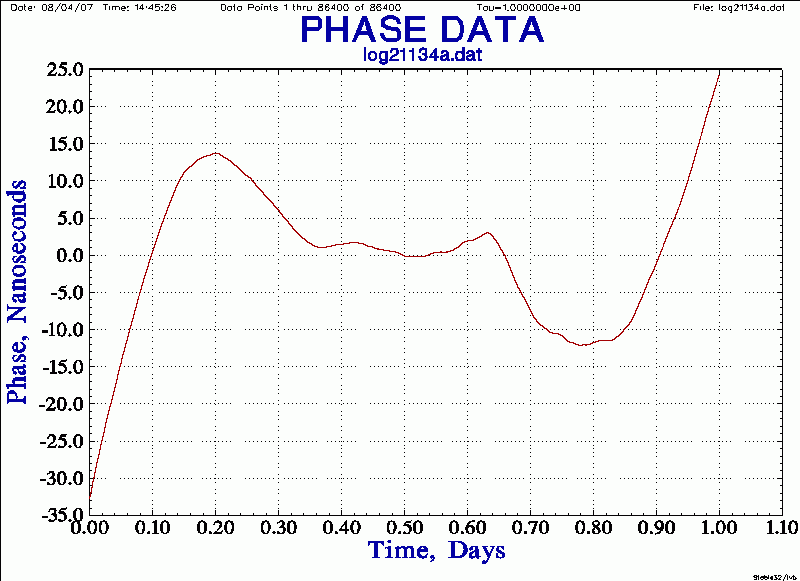

Normalized Phase (frequency offset removed)

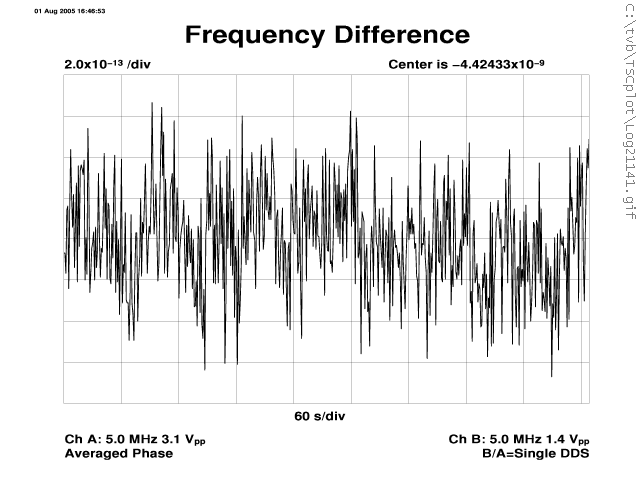

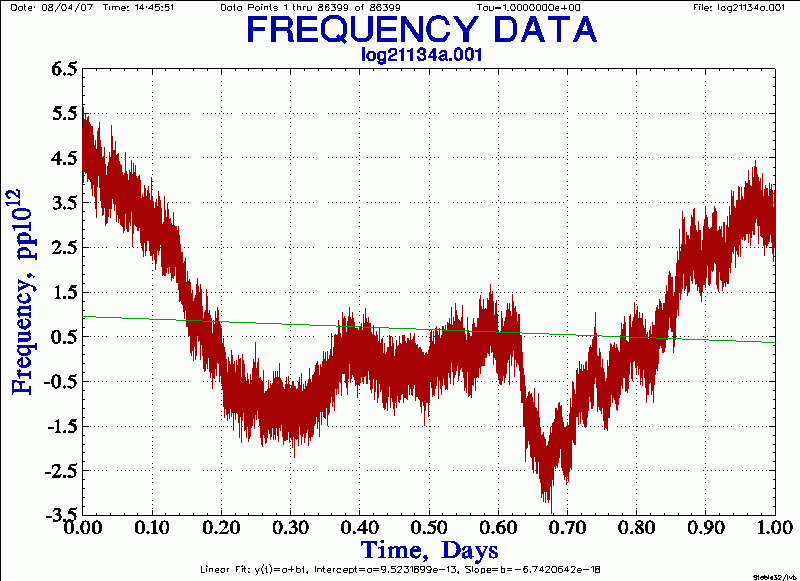

Frequency

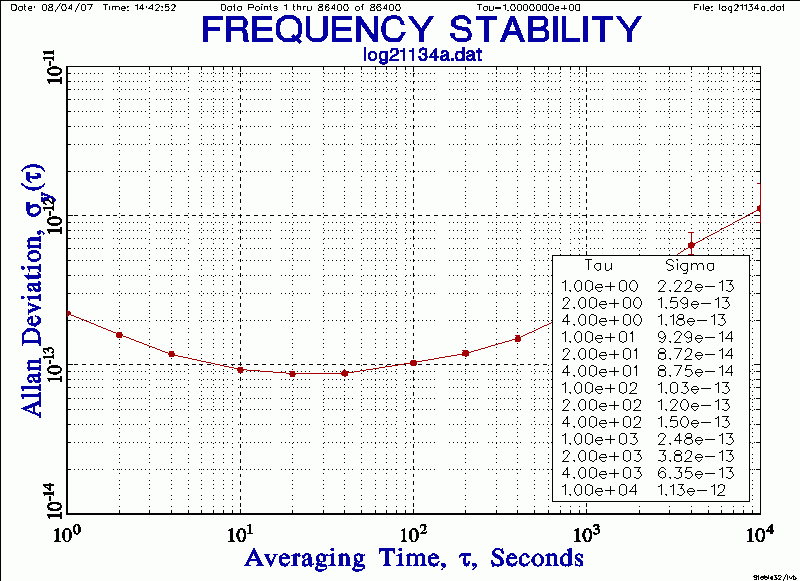

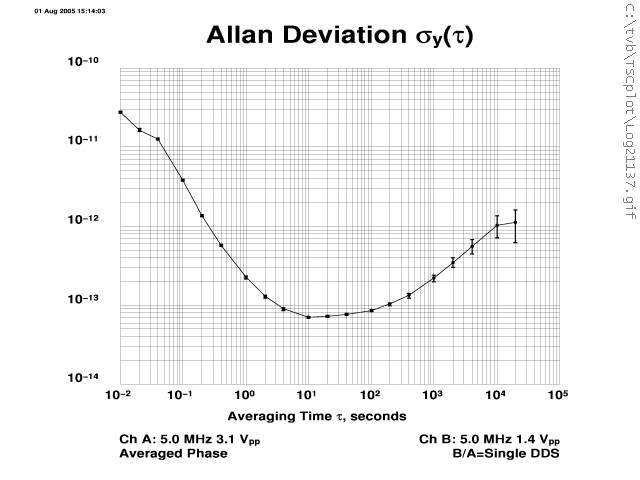

Allan Deviation (1-2-4 decade tau)

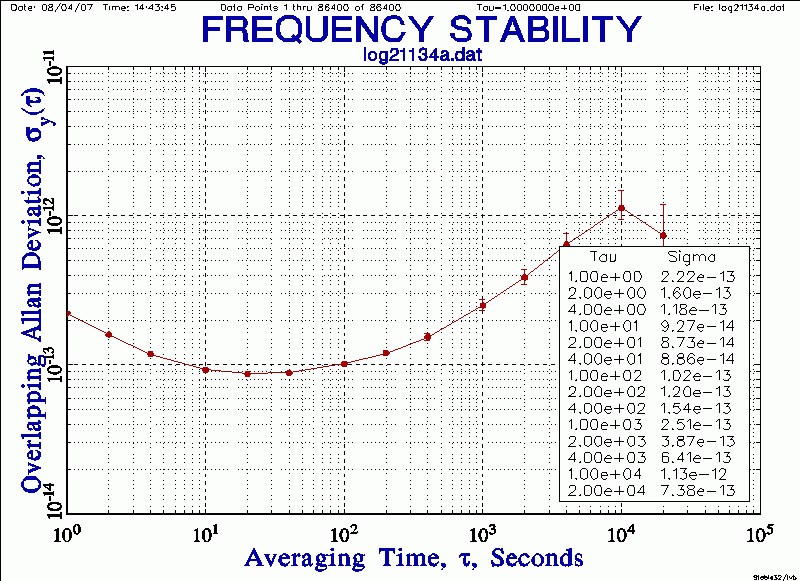

Overlapping Allan Deviation (1-2-4 decade tau)

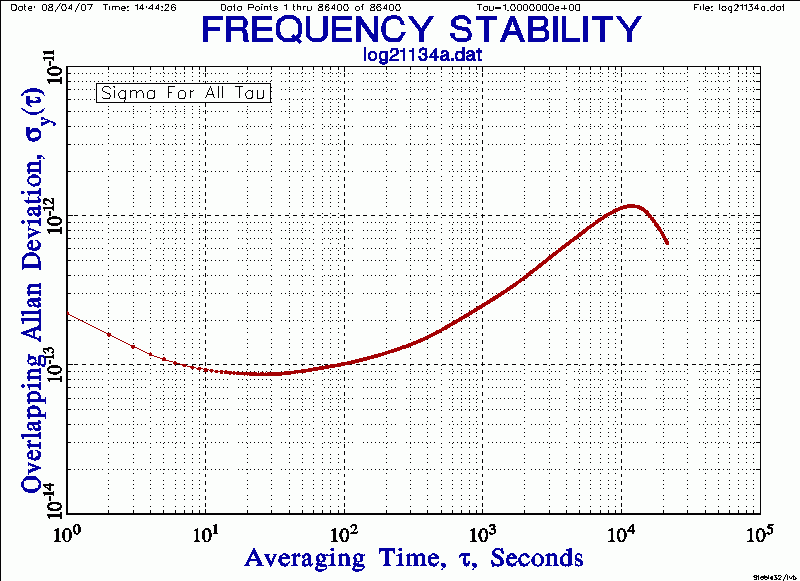

Overlapping Allan Deviation (many tau)

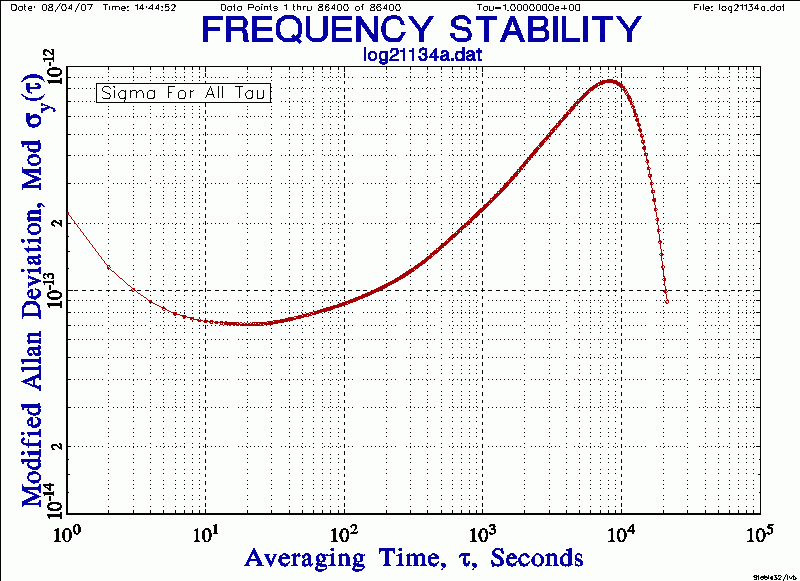

Modified Allan Deviation (many tau)

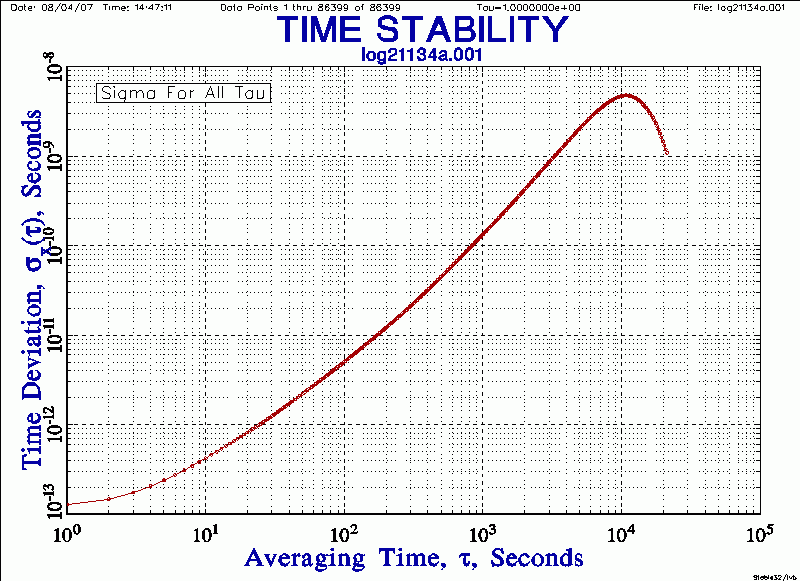

Time Deviation

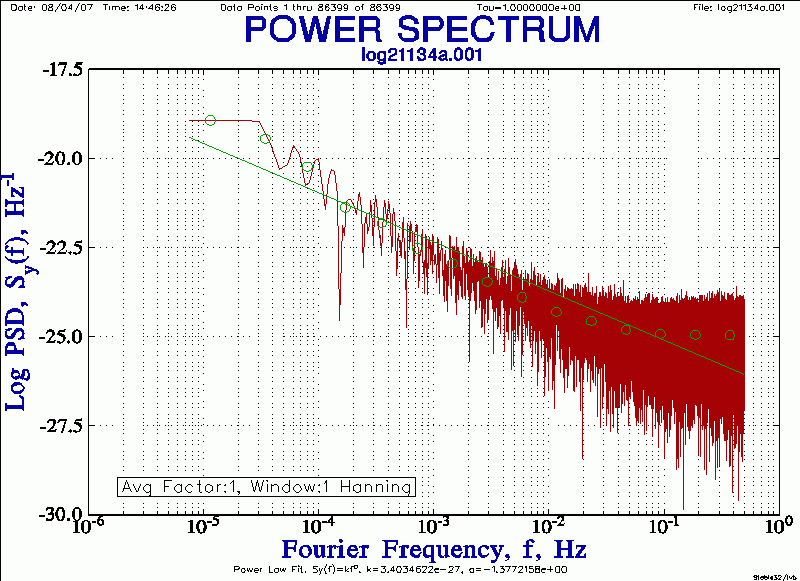

Power Spectrum

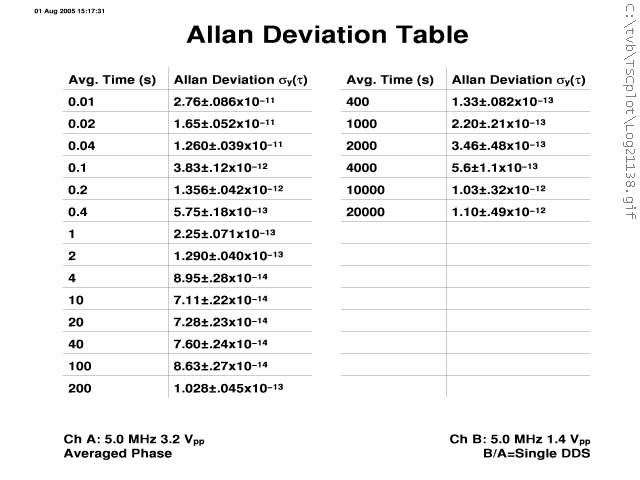

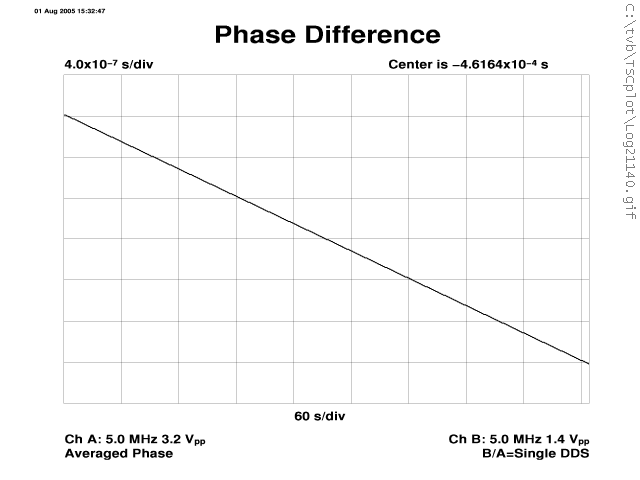

TSC 5110A plots

Raw Data and Notes

• File: log21134a.dat.gz
• Size: 86400 phase samples
• Rate: 1 Hz
• Arbitrary phase and frequency offset removed
• TSC 5110A Time Interval Analyzer
• H-maser reference
• Run end date 08/01/2005 11:27 PM
• Plots from TSC 5110A and Stable32
