Trimble Thunderbolt Power Supply Connector
27-May-2008

Some Thunderbolt kits include a power supply with Molex power connector already installed. Others include the parts to make the connector yourself. Follow the photos below.

Building the power connector

Molex connector and pins:

The brown wire (frame ground) isn't part of the connector.

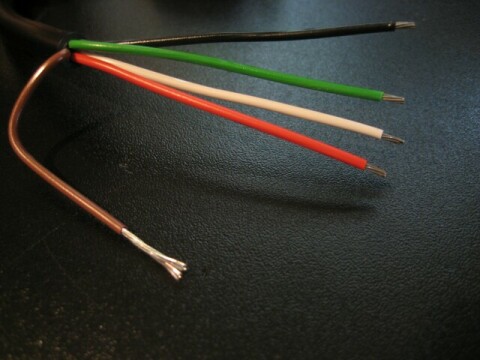

Strip other four wires to about 2 or 3 mm. Arrange in red-white-green-black order.

Crimp the four pins using your favorite crimp tool:

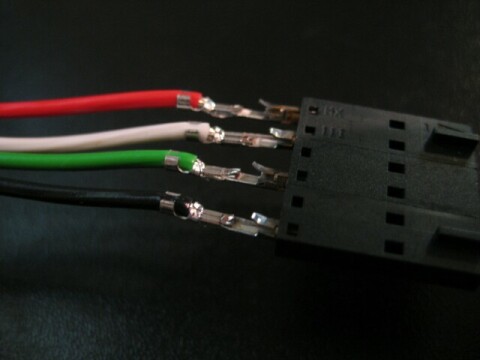

Carefully insert in this exact order; red (pin 1), white, skip, green, skip, black (pin 6):

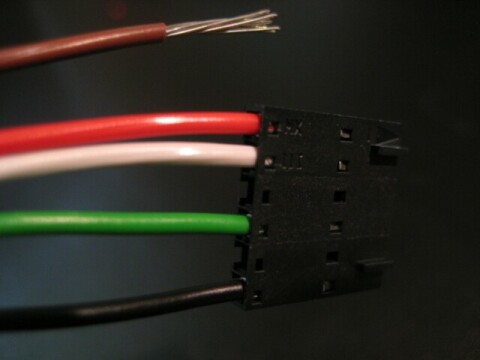

Finished power connector and optional frame ground wire:
